When a classic Lotus Esprit Turbo arrived at our Lotus repair shop in Reseda with a non-running engine, it presented exactly the kind of challenge our team thrives on. This British icon from the 1980s required a complete engine rebuild — a project that demands both specialized knowledge and hands-on experience with vintage European powertrains.
Every phase of this rebuild was documented with photos and video — from initial diagnosis through final verification. That documentation drives our process: we measure before we decide, we photograph before we disassemble, and we verify before we deliver. Here’s how we brought this Esprit back to life.
The challenge
The owner brought in this grey-blue Lotus Esprit Turbo after the engine had developed serious internal issues. The car had been sitting for an extended period, and attempts to diagnose the problem elsewhere had been unsuccessful.
Initial assessment revealed:
- Engine would not start
- Suspected turbocharger failure
- Unknown condition of internal engine components
- Clutch system required inspection
- Ignition system needed evaluation
Classic Lotus Esprit models use a turbocharged inline-4 engine paired with a Renault UN1 transaxle — a unique drivetrain configuration that requires specific expertise to service properly.
Our approach
Before any teardown began, our technicians performed a systematic diagnosis to establish a baseline — confirming what had failed, what was suspect, and what could be evaluated only after disassembly. This diagnosis-first approach prevents unnecessary work and ensures the rebuild scope is driven by evidence, not assumptions.
Phase 1: Engine removal
The mid-mounted engine and transaxle assembly was carefully extracted using an engine hoist. With the Esprit’s fiberglass body, extra care was taken to protect all surrounding panels during removal — each step documented to create a reassembly reference.
Phase 2: Complete disassembly and inspection
Once removed, the engine-transaxle unit was fully disassembled. Every component was inspected, measured against factory specifications, and cataloged:
- Cylinder head removed and evaluated
- Turbocharger disassembled and inspected
- Pistons, rings, and bearings checked for wear
- Valve train components measured against factory tolerances
- Transmission internals inspected
These measurements formed the basis of our rebuild plan — determining what could be reconditioned, what needed replacement, and what was still within specification.

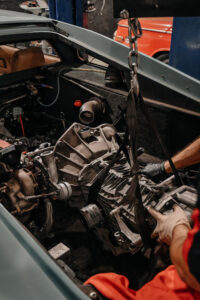

Phase 3: Turbocharger rebuild
The original turbocharger showed significant wear. Rather than replace with an aftermarket unit, we rebuilt the factory turbo to maintain authenticity and proper boost characteristics for this classic application. This is the kind of scope decision that matters: a rebuild restored correct function at a fraction of full replacement cost, while preserving the originality that gives this car its value.
Phase 4: Engine rebuild
With all worn components identified through measurement, the engine was rebuilt using OEM-specification parts and materials:
- New gasket set throughout
- Refreshed valve train components
- Rebuilt cylinder head with proper valve adjustment
- New timing belt and tensioners
- Fresh ignition components including distributor service
Supporting systems were addressed at the same time — fuel delivery, cooling circuits, turbo plumbing, and ignition wiring were all inspected and serviced to ensure the rebuilt engine operates in a fully functional ecosystem, not just a refreshed block surrounded by aging components.
Phase 5: Clutch and transmission service
The Renault UN1 transaxle was serviced and the clutch assembly replaced. The flywheel was inspected and resurfaced to ensure proper engagement with the new clutch disc.

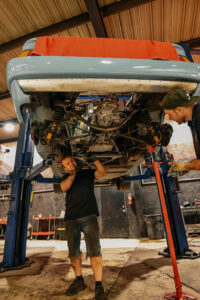

Phase 6: Reassembly and installation
The rebuilt engine-transaxle assembly was carefully reinstalled using the photographic documentation from disassembly as a reference. All fluids were filled with factory-approved Liqui Moly synthetic oils meeting original specifications.
The results
After complete reassembly, the Esprit fired up immediately. The rebuilt turbo engine now delivers smooth power delivery with proper boost response. The new clutch engages cleanly, and the refreshed ignition system provides reliable starting.
This Lotus Esprit Turbo is now ready to enjoy Southern California roads once again — running as its British engineers intended.
